Today we have the following standard types:
MAC050-A1-xxxx ( IP42 ) MAC050-A3-xxxx ( IP67 )
MAC095-A1-xxxx ( IP42 )
MAC140-A1-xxxx ( IP42 ) MAC140-A2-xxxx ( IP55 ) MAC140-A3-xxxx ( IP67 )
MAC141-A1-xxxx ( IP42 ) MAC141-A3-xxxx ( IP67 )
( If speciel versions are required, then please contact JVL )
If brake is needed, we have a brake that can be mounted directly at the motor shaft of the motor - MAB23.
If the motor shaft is too thin ( Ø 6.35 mm ), we have a reforcement unit, which can
be mounted at the motor shaft - MAS23 ( 14 mm ).
Special type:

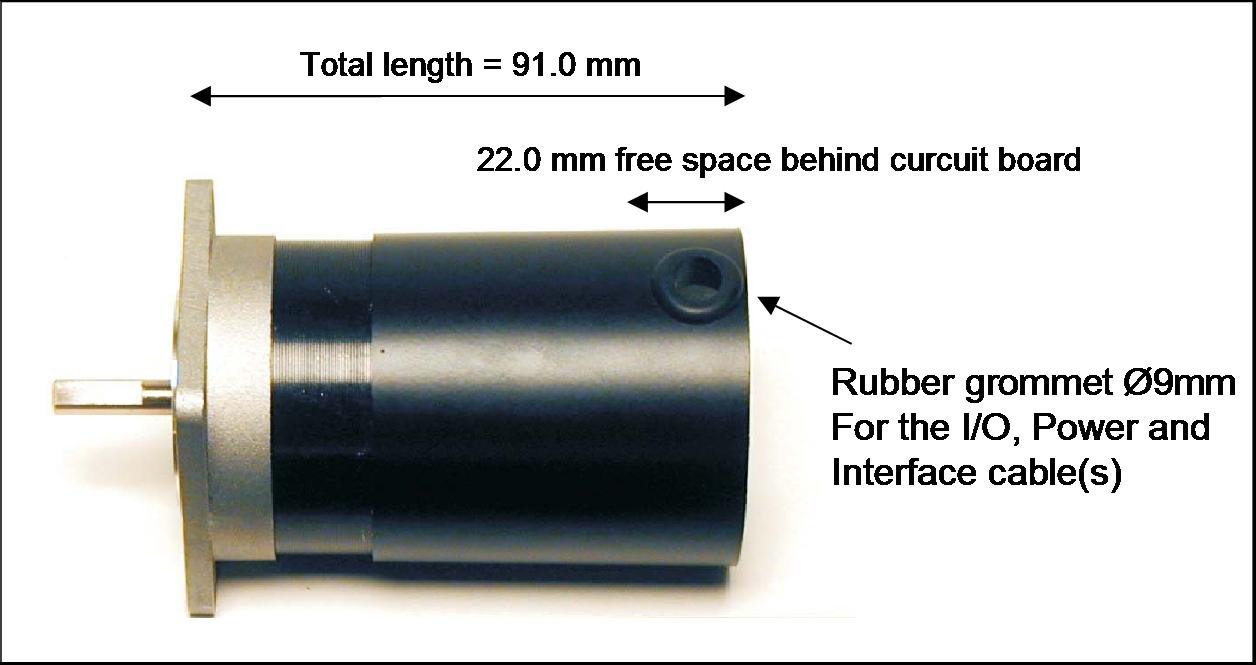

MAC050-A1AEAA It is a version that is 20 mm shorter than the standard
MAC050-A! and has a connection in the side for cable.
