How do I save or get an EEPROM value in the module ?

June 29, 2009faq

JVLservo motorstepper motormotion controlFAQfrequently asked questionsmotion control030604HowsaveNano PLCExpansion Module

To save a registervalue in the RxP module you have to use the Binary Codes.

Here is an example of how to save 2 registers and an example of how to get these values again.

Example:

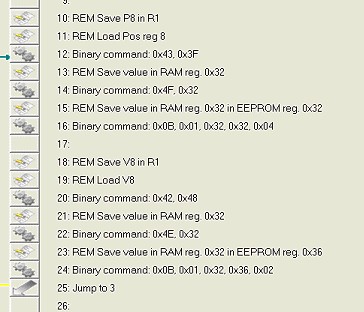

How to save the P8 and V8 values in the EEPROM in the RxP module:

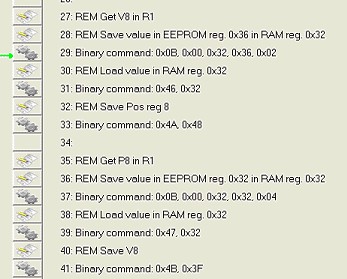

How to get the P8 and V8 values in the EEPROM in the RxP module:
