Machine Tools Applications
JVL closed-loop stepper and servo motors bring industrial-grade precision to CNC machines, laser systems, and 3D machining centers with resolutions up to 409,600 steps per revolution.
Industry Challenges
Surface Finish Quality
CNC milling and engraving demand smooth, jitter-free motion to achieve fine surface finishes.
Multi-Axis Coordination
3D machining requires tight synchronization between X, Y, and Z axes at varying feed rates.
Thermal Stability
Extended machining cycles generate heat. Motors must maintain positioning accuracy despite temperature changes.
Resonance-Free Operation
Mid-range stepper resonance causes visible artifacts on workpieces. Closed-loop damping is essential.
Recommended Motors
Stepper Motors

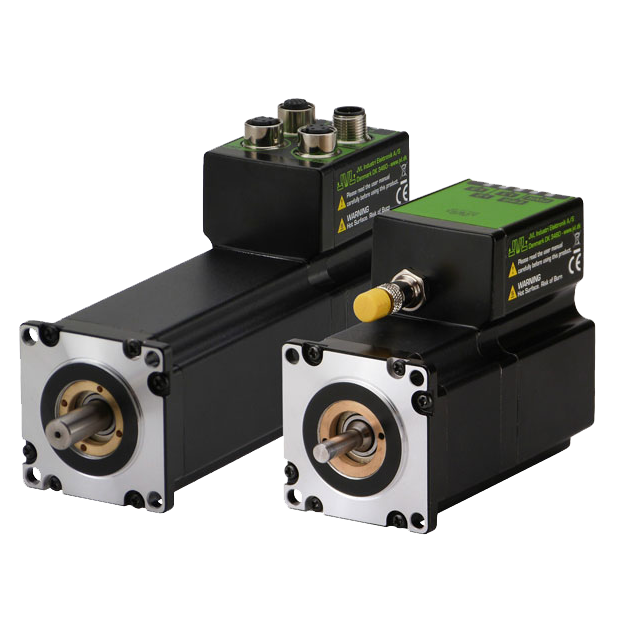

MIS231
ServoStep MIS - NEMA 23 Integrated Stepper Motor with servo control (closed-loop)
MIS232
ServoStep MIS - NEMA 23 Integrated Stepper Motor with higher torque

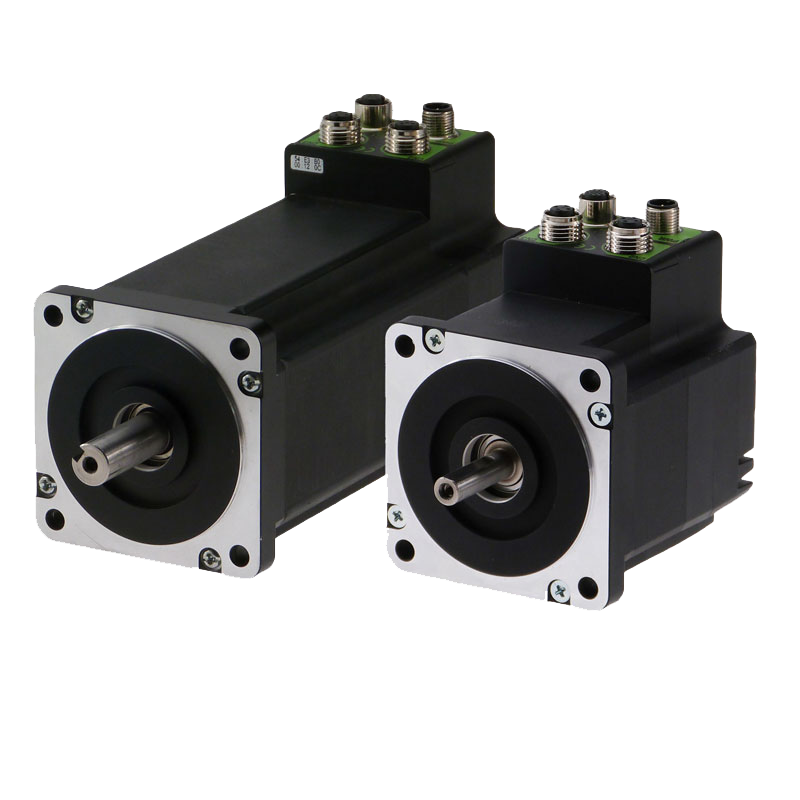

MIS341
ServoStep MIS - NEMA 34 Integrated Stepper Motor with higher torque
MIS342
ServoStep MIS - NEMA 34 Integrated Stepper Motor with high torque
Servo Motors
Why JVL for Machine Tools?
Closed-Loop Anti-Resonance
ServoStep technology actively damps mid-range resonance, eliminating vibration artifacts on machined surfaces.
409,600 Steps/Rev
Ultra-high resolution enables sub-micron positioning for precision engraving and laser applications.
Absolute Encoder
Battery-free absolute multiturn encoder maintains position through power cycles — no homing required.
Multi-Protocol Support
Native support for all major Industrial Ethernet protocols connects directly to any CNC controller.
Winning Applications

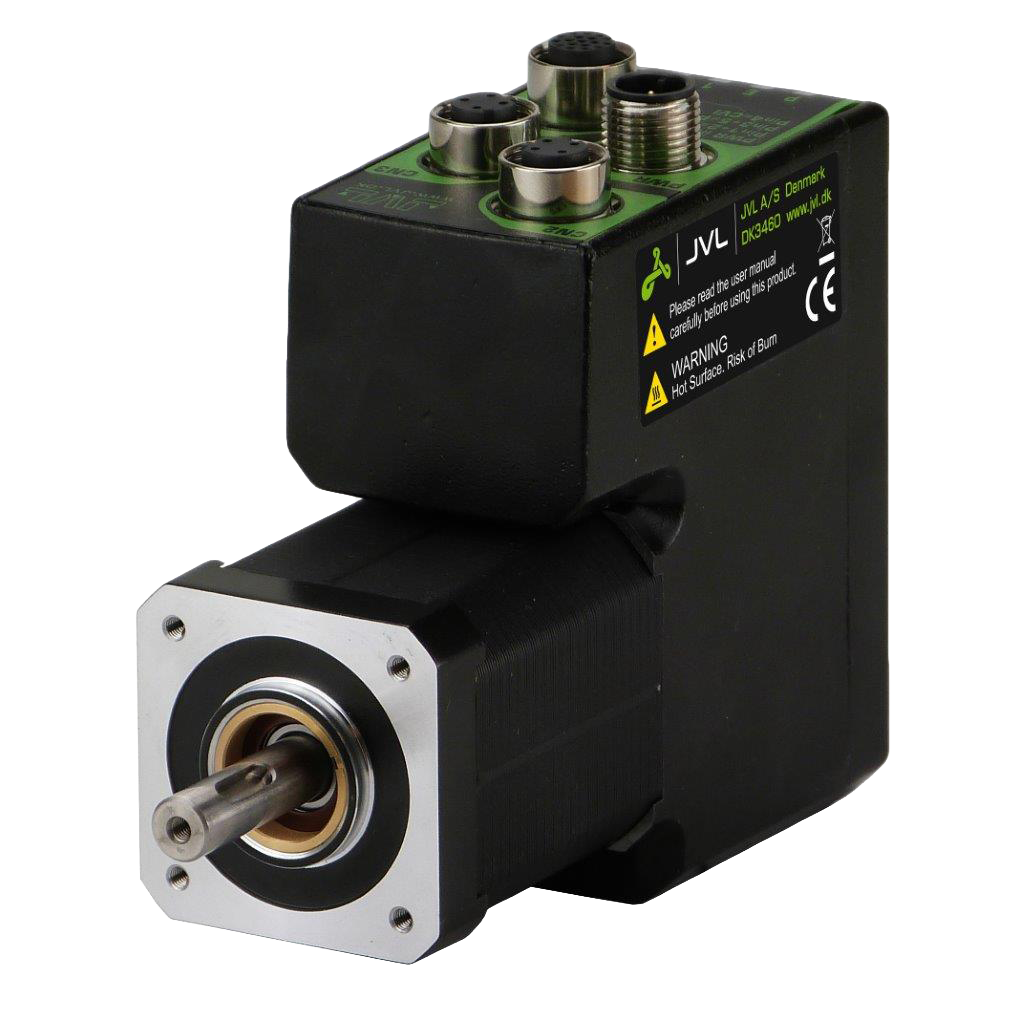

Liquid metal analyzing machine, where the JVL MIS176 motor performs the horizontal movement in the machine.
ISWon because the JVL ServoStep motor could be used as the only electronic part of the machine besides the analysis tools. The size of the machine is held to a minimum with the lowest installation costs.
MIS176Height positioning of main nozzle in water jet machine. MAC140 with holding brake.
SEWon because the customer wanted a motor to fit in an existing machine construction with limited cabinet space.
MAC140Industrial 3D printers for large format prints and high throughput. 3-axis control of 3D print head. Integrated Closed-Loop ServoStep provides peak torque for faster direction changes and smoother print surface.
USReduction of control panel space by removing separate drive components. Simplified wiring. Cost savings due to smaller bill of materials.
ServoStepAutomatic cut-off machines. MIS232 with CANopen and encoder. Special motor with double torque 24 VDC. CAN and Power in the same connector. High and low speed range: 0.5 – 600 RPM.
DKWon because the customer wanted a more compact and reliable solution.
MIS232Linear movement of cooling system in grinding machine — with linear actuator.
CHCompact integrated ServoStep motor with linear actuator for precise positioning.
MIS231Laser marking system X/Y/Z axis — 3-4 axes, open and close door requiring STO and fast restart. 1.6 Nm, 500-700 RPM, need PLC function in motor.
CHIntegrated PLC function in motor with STO safety input. Fast restart capability for laser marking applications.
MIS232Customer specializes in track & trace and inspection solutions. The Argo rotary inspection machines control vials, bottles, and other containers, checking parameters such as filling, sealing, particle presence, and packaging integrity. JVL stepper motors control rotation of container holders and movement of inspection stations with up to 24 motors per carousel.
ITWon thanks to the ability to program each individual motor via the internal ePLC, relieving the PLC of motor management. Communication via single write/read register. Ability to switch firmware from Profinet to EtherCAT — a free feature. Special part numbers with locked firmware and pre-inserted calibration for plug-and-play installation.
MIS232/MIS34xUltrasonic plastic welding. Use the MAC1500 motor to bring large plastic parts in and out of the work area with a robot.
USThey liked the decentralized design that allowed for a smaller control panel and easy changeout for less downtime.
MAC1500Ultrasonic plastic welding. Used MIS motors for clamping and positioning of parts to be welded.
USThey liked the decentralized design that allowed for a smaller control panel and easy changeout for less downtime.

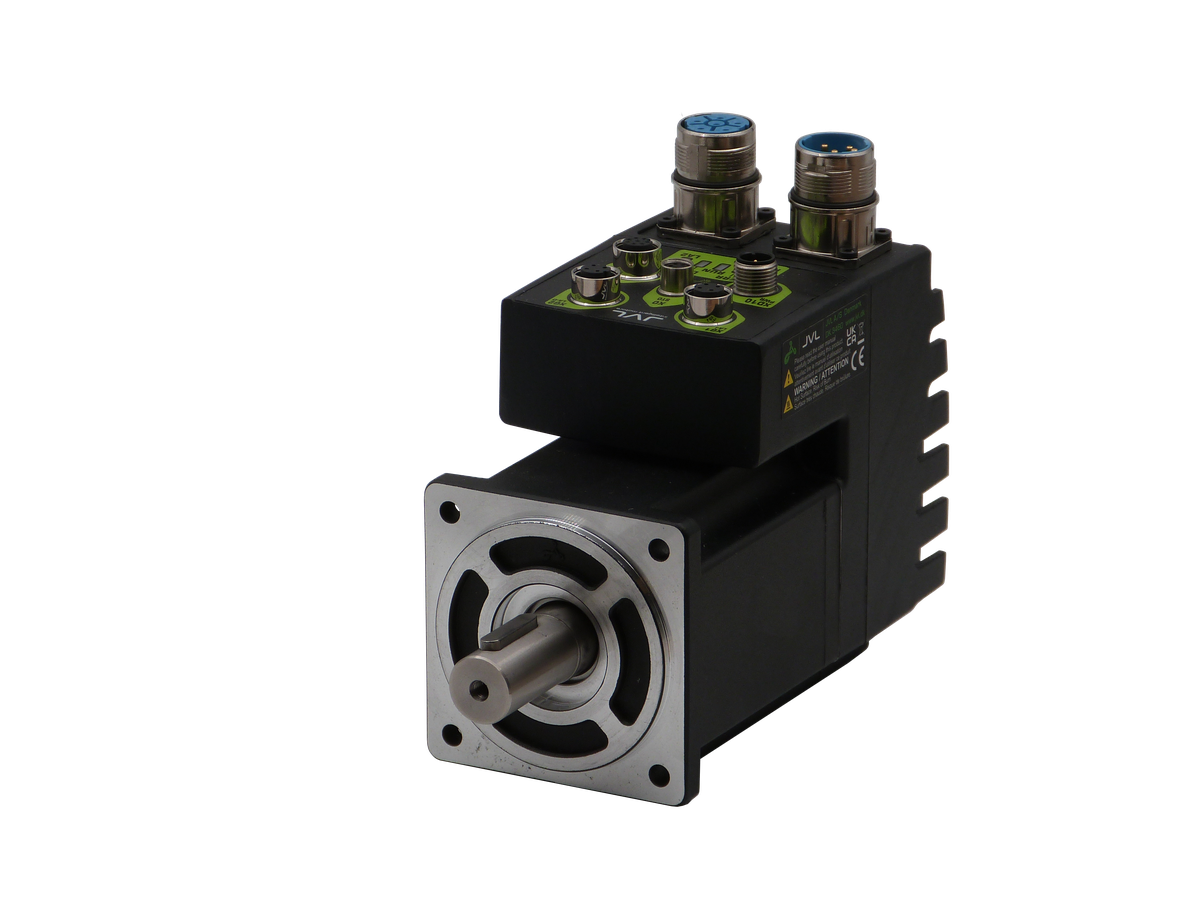

MIS23/MIS34Metal machining equipment. Used MAC800 motors for clamping and positioning of curved machined aluminum components.
USThey liked the decentralized design that allowed for a smaller control panel and easy changeout for less downtime.
MAC800Semiconductor wet bench equipment. Currently uses MAC400 motors for a 3-axis gantry. The wet bench grinds and polishes wafer material.
USThey like the decentralized design that allowed for a smaller control panel and easy changeout for less downtime.

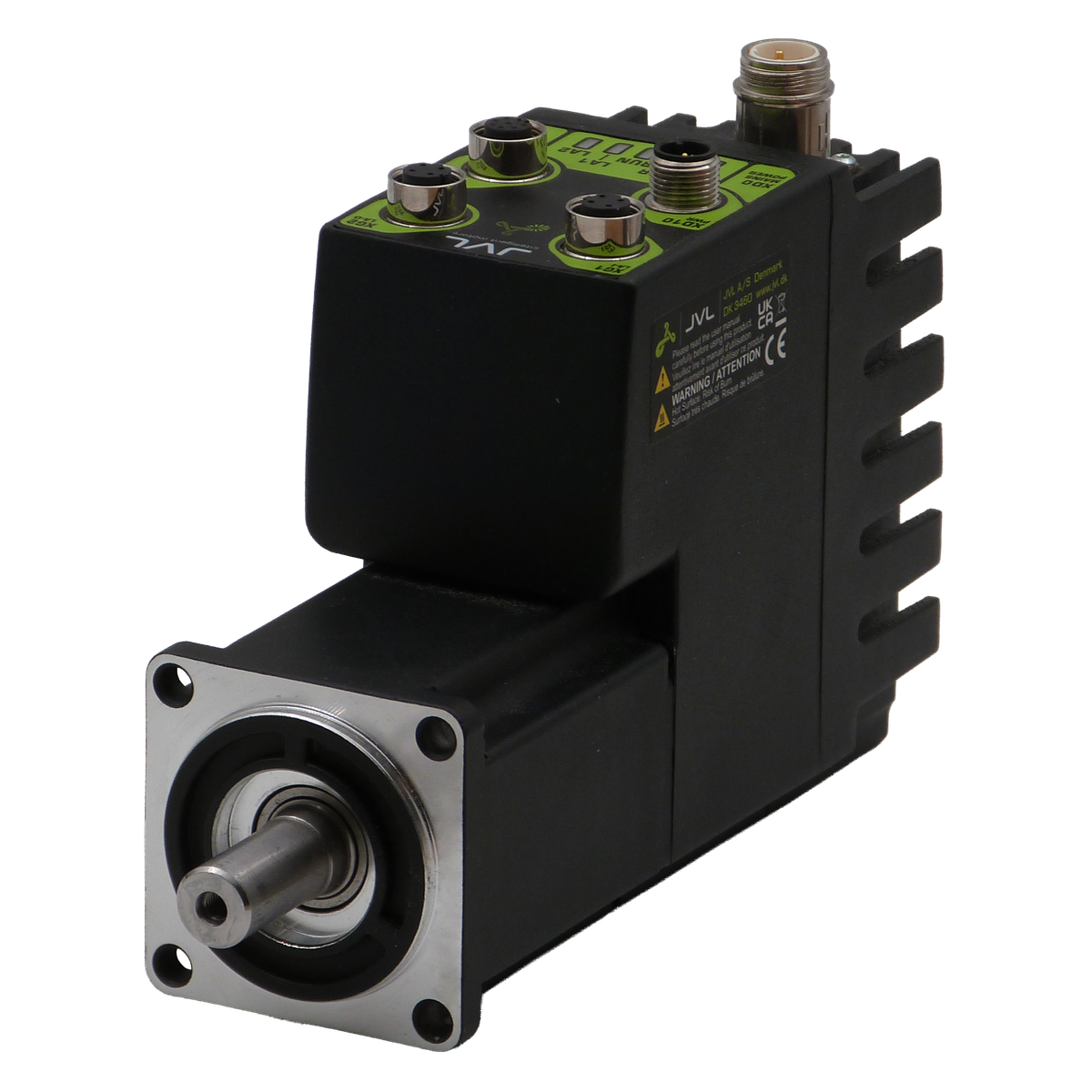

MAC400Different adjustment units in CVD diamond synthesis machines.
DEComfortable Profinet programming with Function Blocks. Good technical and sales support.

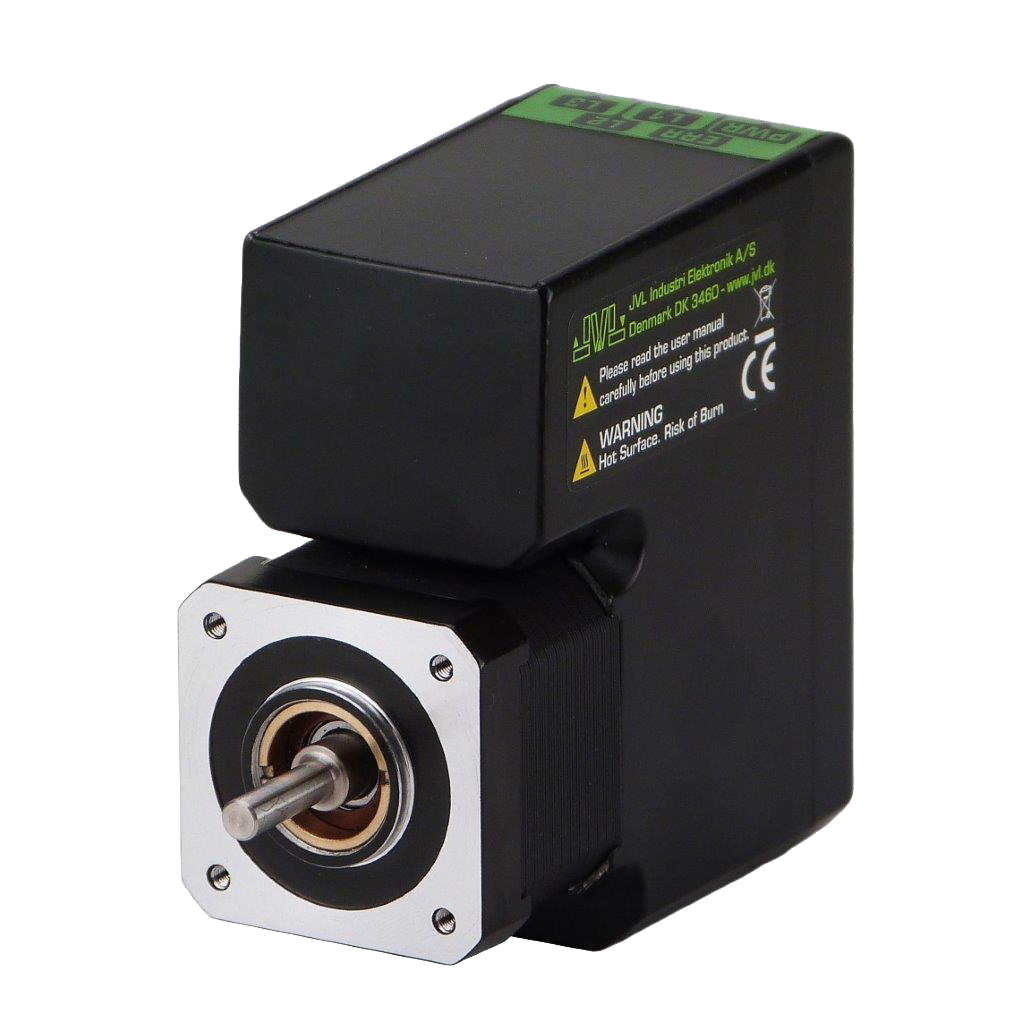

MIS231Laser plasma application. MIS173 JVL Integrated ServoStep motor.
NLIntegrated EtherCAT and multiturn absolute encoder allows mounting without control cabinet. Controlled directly from a PC.
MIS173Ski grinding machines. Contact pressure regulation of the grinding stone directly via the analogue input.
CHDirect analogue input for real-time pressure regulation in grinding applications.
MAC400Balancing machines. Adjusting the balance unit of the balancer in the rotary part of the balancing machine.
DEIntegrated motor for precise balance unit adjustment in rotary balancing equipment.
MIS34Machines for the production of electric motors and generators. Format adjustments.
DEIntegrated motor for flexible format adjustment in electric motor manufacturing.
MIS34Thin film production. Single wafer processing production units. Different uses of our drives in handling and in the process.
CHVersatile motor range for various handling and process axes in thin film production.
MIS & MACReady to Automate Your Machine Tools Application?
Our application engineers can help you select the right motor and configure it for your specific needs.
Request a QuoteTalk to an Engineer
